Wasteboard

Cut out wasteboard

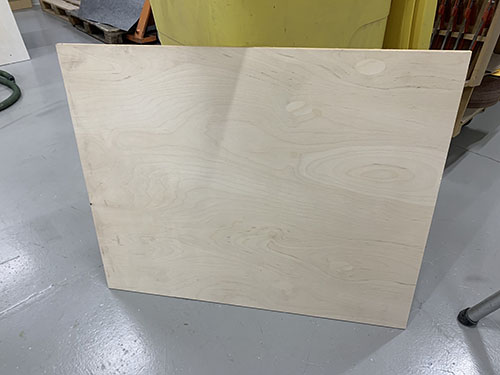

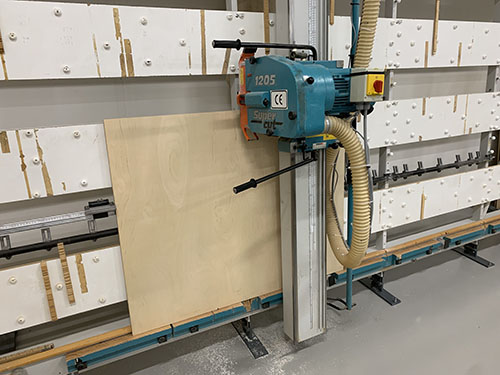

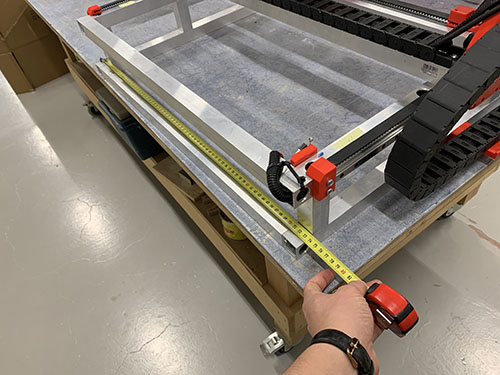

The length and width of the CNC was measured and a 12 mm plywood (O26) was cut out using a vertical panel saw. If you don't have a vertical panel saw, a jigsaw or a circular saw works as well.

wasteboard_1

wasteboard_2

wasteboard_3

Attach wasteboard to CNC

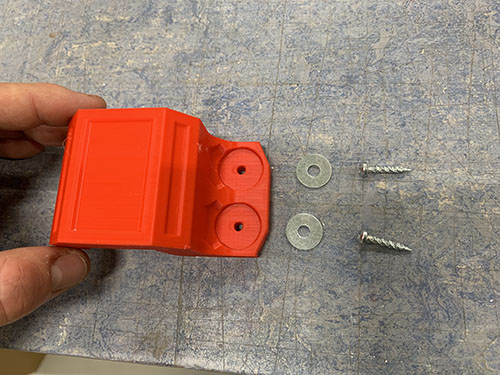

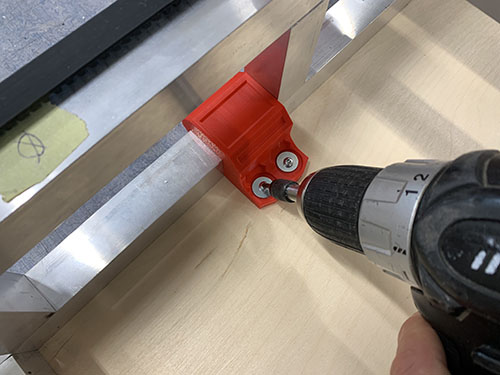

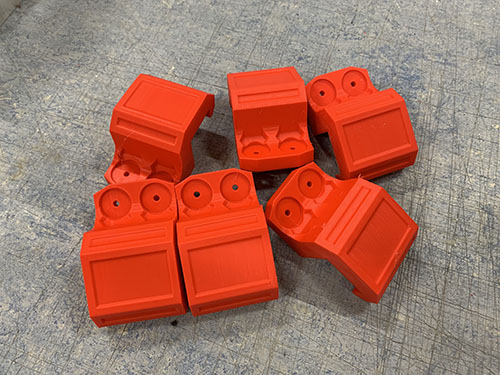

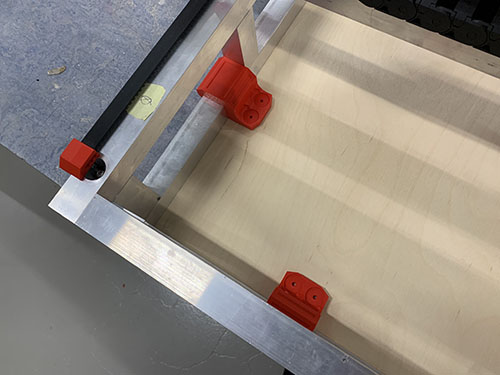

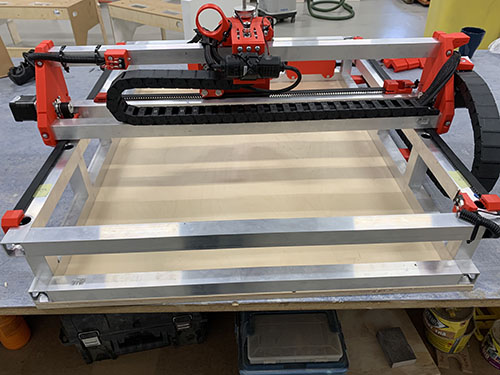

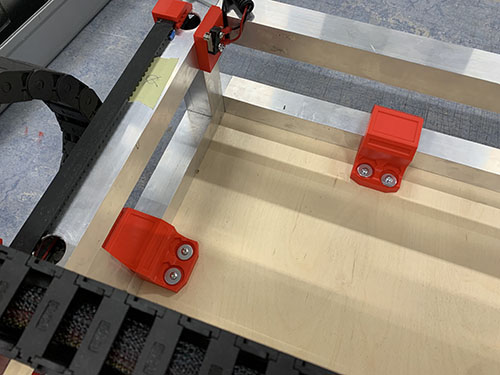

The wasteboard was placed underneath the CNC machine. 7x 3d-printed wasteboard brackets (P37), 14x 3.5x20mm screws (S01) and 14x (15mm x 5mm x 1mm) washers (W02) were used to to keep the wasteboard in place.

wasteboard_4

wasteboard_5

wasteboard_7

wasteboard_6

wasteboard_8

wasteboard_9
