Bill of materials

This page includes an aggregated overview (incl. images) of all the parts needed to build the CNC-machine. To get a better understanding of how the parts are used (additional comments etc), check the following detailed spreadsheet:

The 3d-printed parts were printed in standard PLA using:

  • 30% infill
  • 4 top solid horizontal layers
  • 4 bottom solid horizontal layers
  • 4 perimeters

The complete PrusaSlicer config used can be found here: prusa_slicer_config.ini

3d-printed parts

Item No. Type Amount Image STL-file OBJ-file
P01 Back middle panel (large electronic box) 1 Missing middle_back_panel_electronic_box_large.stl middle_back_panel_electronic_box_large.obj

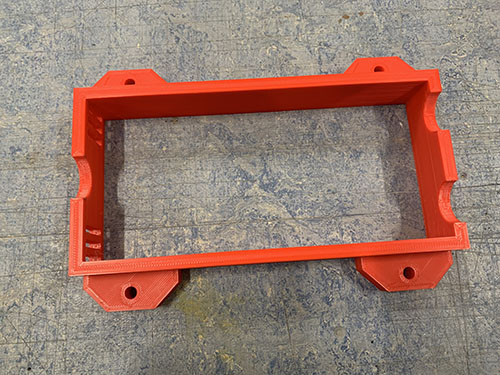

P02 Back middle panel (small electronic box) 1 back_middle_panel_small_electronic_box middle_back_panel_electronic_box_small.stl middle_back_panel_electronic_box_small.obj

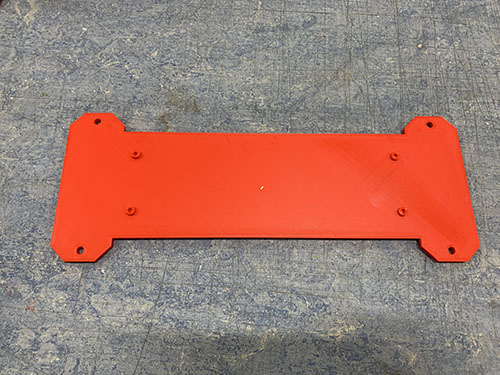

P03 Back panel (large electronic box) 1 back_panel_large_electronic_box back_panel_electronic_box_large.stl back_panel_electronic_box_large.obj

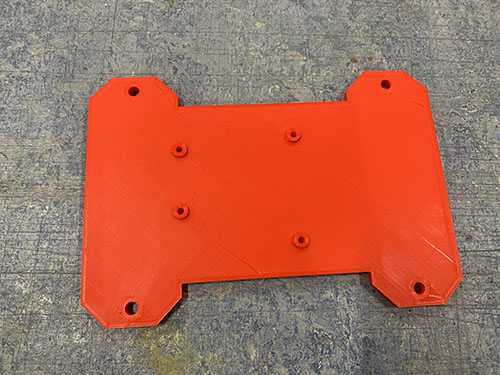

P04 Back panel (small electronic box) 1 back_panel_small_electronic_box back_panel_electronic_box_small.stl back_panel_electronic_box_small.obj

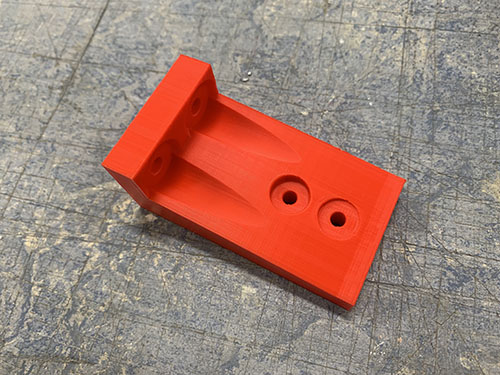

P05 Cable chain mount 1 y_axis_cable_chain_mount Y_CHAIN_BOTTOM_BRACKET_SUPPORT_1.stl Y_CHAIN_BOTTOM_BRACKET_SUPPORT_1.obj

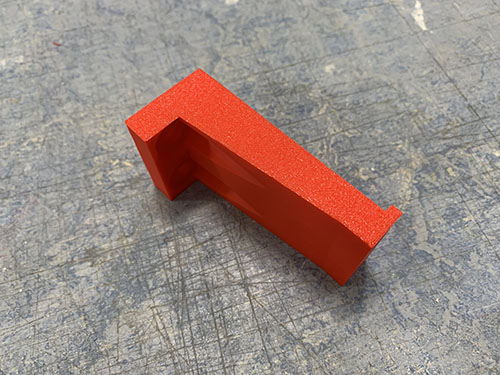

P06 Cable chain support 1 y_axis_cable_chain_support Y_CHAIN_BOTTOM_BRACKET_SUPPORT_2.stl Y_CHAIN_BOTTOM_BRACKET_SUPPORT_2.obj

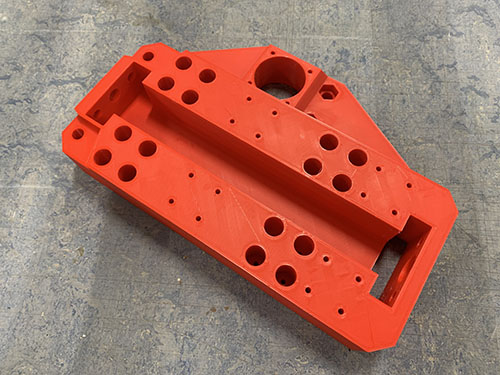

P07 Carriage 1 carriage CARRIAGE.stl CARRIAGE.obj

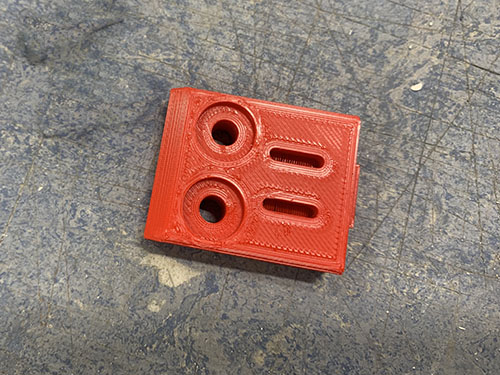

P08 End-stop mount (ordinary) 3 end_stop_mount_ordinary ENDSTOP_LIMIT_SWITCH.stl Missing

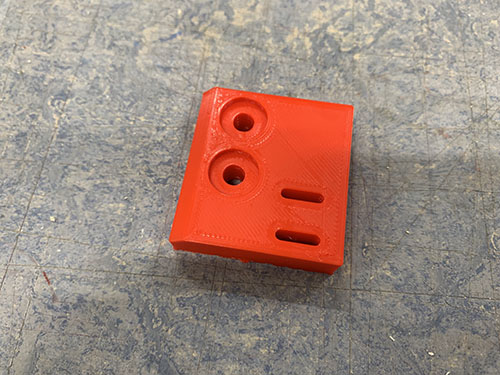

P09 End-stop mount (tall) 1 end_stop_mount_tall Y_AXIS_ENDSTOP_LIMIT_SWITCH_LONG.stl Y_AXIS_ENDSTOP_LIMIT_SWITCH_LONG.obj

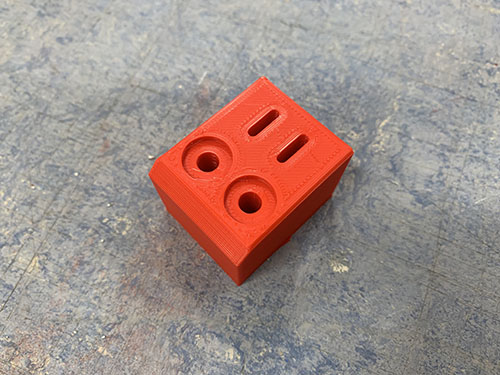

P10 End-stop mount (thick) 1 end_stop_mount_thick X_AXIS_ENDSTOP_LIMIT_SWITCH_THICK.stl X_AXIS_ENDSTOP_LIMIT_SWITCH_THICK.obj

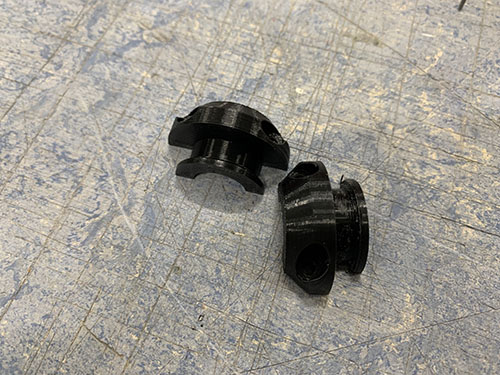

P11 Flexible conduit strain relief (halves) 8 cable_strain_relief CABLE_STRAIN_RELIEF.stl CABLE_STRAIN_RELIEF.obj

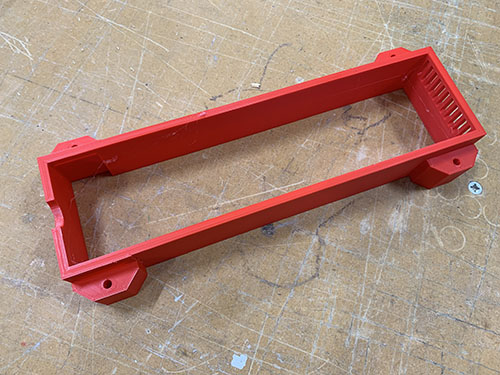

P12 Front middle panel (large electronic box) 1 front_middle_panel_large_electronic_box middle_front_panel_electronic_box_large.stl middle_front_panel_electronic_box_large.obj

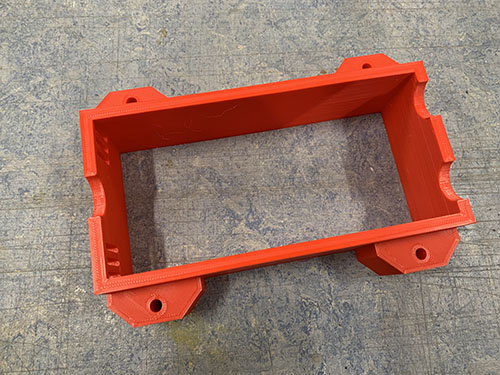

P13 Front middle panel (small electronic box) 1 front_middle_panel_small_electronic_box middle_front_panel_electronic_box_small.stl middle_front_panel_electronic_box_small.obj

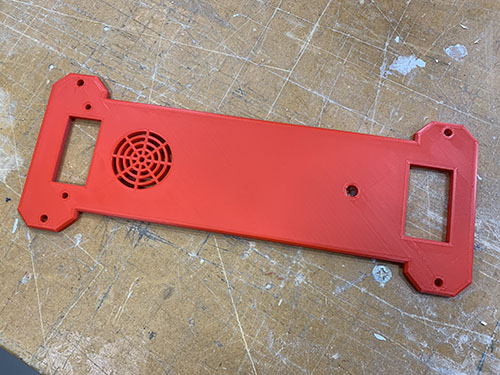

P14 Front panel (large electronic box) 1 front_panel_large_electronic_box front_panel_electronic_box_large.stl front_panel_electronic_box_large.obj

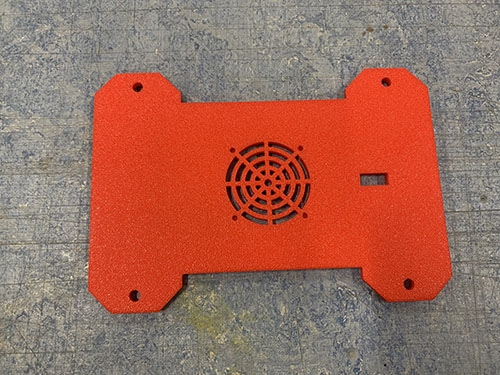

P15 Front panel (small electronic box) 1 front_panel_small_electronic_box front_panel_electronic_box_small.stl front_panel_electronic_box_small.obj

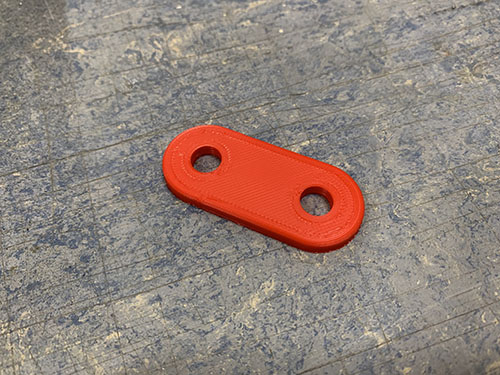

P16 Idler block 3 idler_block IDLER_BLOCK.stl IDLER_BLOCK.obj

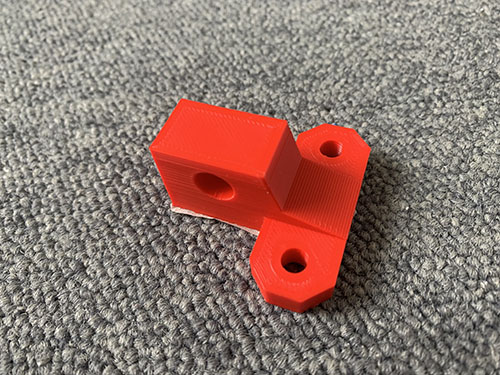

P17 Left belt tension slider 1 y-axis_left_belt_tension_slider Y_AXIS_LEFT_BELT_TENSIONER.stl Y_AXIS_LEFT_BELT_TENSIONER.obj

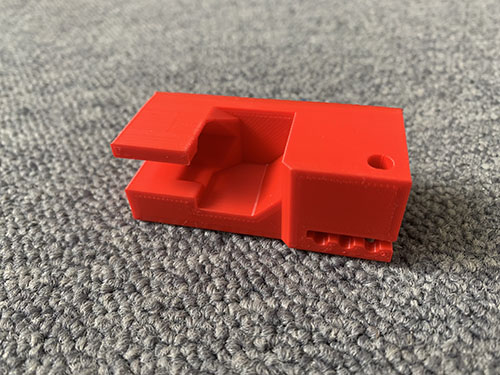

P18 Left belt tensioner 1 y-axis_left_belt_tension Y_AXIS_LEFT_FRONT_CLIP.stl Y_AXIS_LEFT_FRONT_CLIP.obj

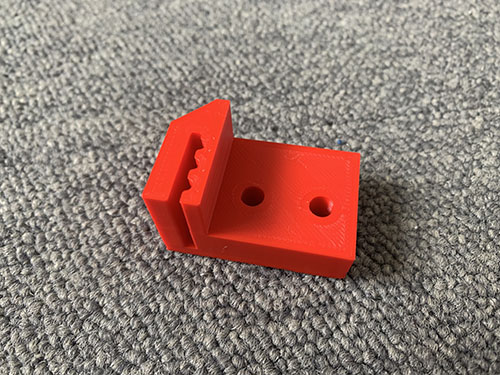

P19 Left fixed belt tensioner 1 y-axis_left_fixed_belt_tension Y_AXIS_LEFT_BACK_CLIP.stl Y_AXIS_LEFT_BACK_CLIP.obj

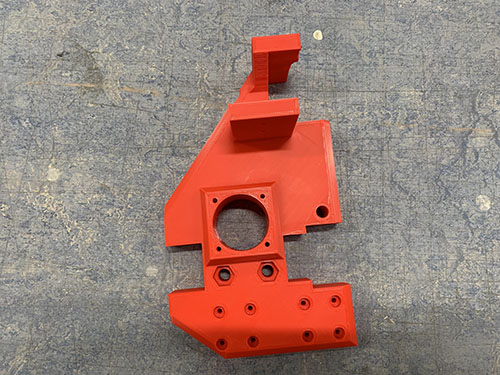

P20 Left side plate 1 left_plate LEFT_PLATE.stl LEFT_PLATE.obj

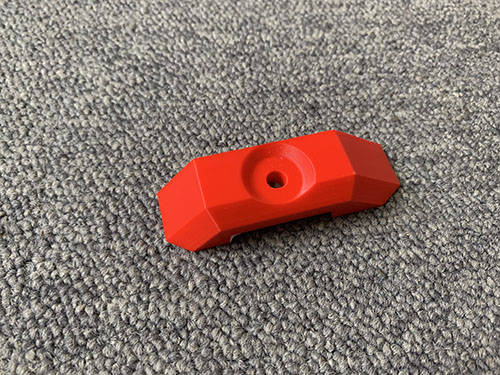

P21 Left side plate lower back clip 1 left_side_plate_lower_back_clip LEFT_PLATE_BACK_CLIP.stl LEFT_PLATE_BACK_CLIP.obj

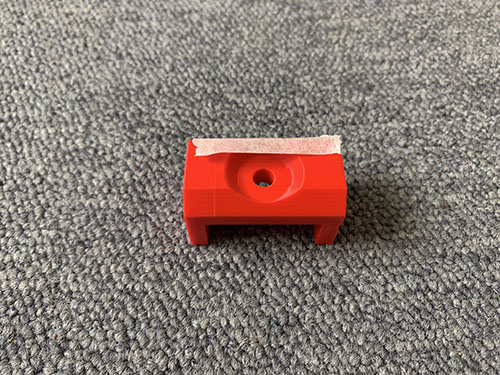

P22 Left side plate lower front clip 1 left_side_plate_lower_front_clip LEFT_PLATE_LOWER_FRONT_CLIP.stl LEFT_PLATE_LOWER_FRONT_CLIP.obj

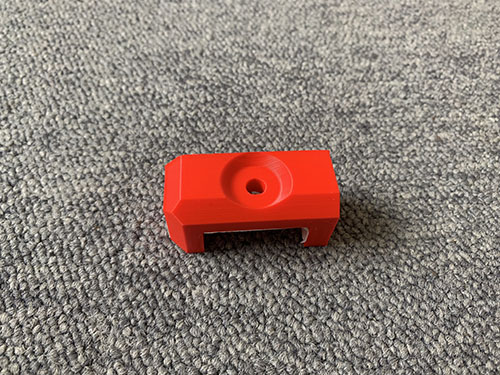

P23 Left side plate upper front clip 1 left_side_plate_upper_front_clip LEFT_PLATE_UPPER_FRONT_CLIP.stl LEFT_PLATE_UPPER_FRONT_CLIP.obj

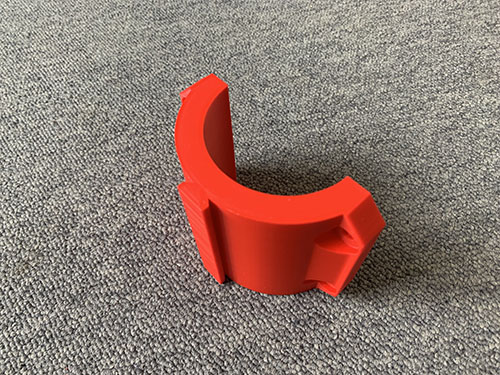

P24 Milling router bracket 1 router_bracket ROUTER_BRACKET.stl ROUTER_BRACKET.obj

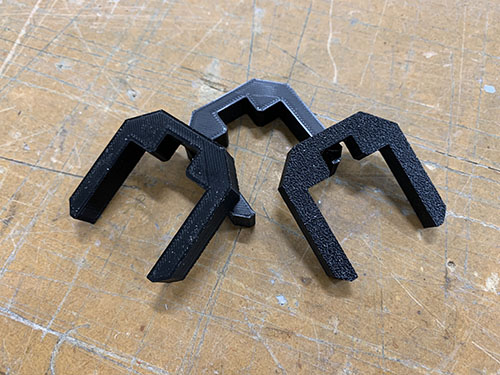

P25 Rail support 3 rails_support RAILS_SUPPORT.stl RAILS_SUPPORT.obj

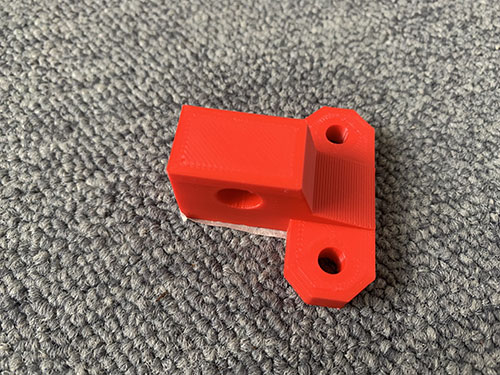

P26 Right belt tension slider 1 y-axis_right_belt_tension_slider Y_AXIS_RIGHT_BELT_TENSIONER.stl Y_AXIS_RIGHT_BELT_TENSIONER.obj

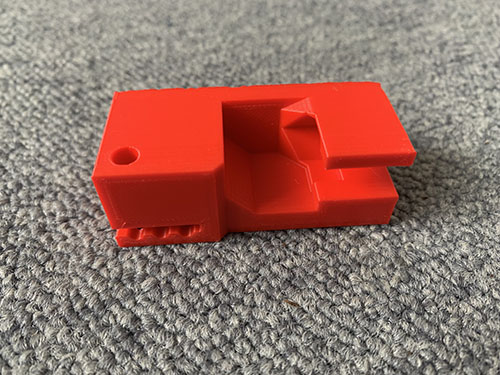

P27 Right belt tensioner 2 y-axis_right_belt_tension Y_AXIS_RIGHT_FRONT_CLIP.stl Y_AXIS_RIGHT_FRONT_CLIP.obj

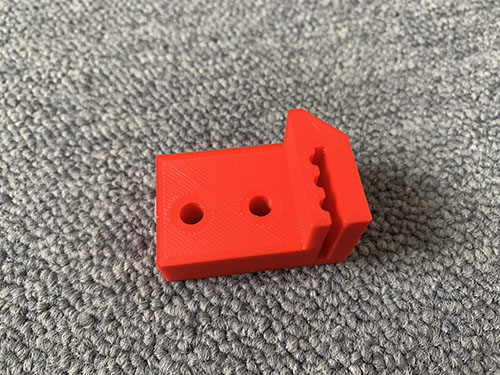

P28 Right fixed belt tensioner 2 y-axis_right_fixed_belt_tension Y_AXIS_RIGHT_BACK_CLIP.stl Y_AXIS_RIGHT_BACK_CLIP.obj

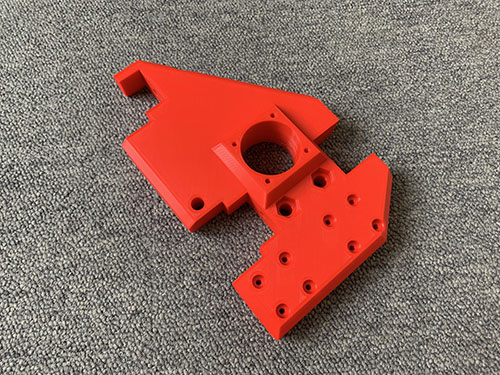

P29 Right side plate 1 right_plate RIGHT_PLATE.stl RIGHT_PLATE.obj

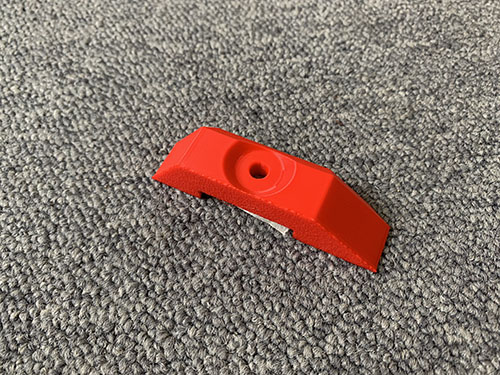

P30 Right side plate lower back clip 1 right_side_plate_lower_back_clip RIGHT_PLATE_BACK_CLIP.stl RIGHT_PLATE_BACK_CLIP.obj

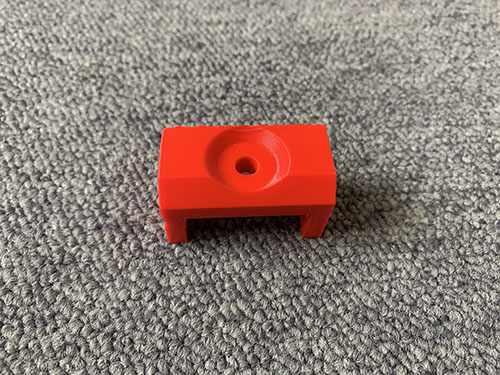

P31 Right side plate lower front clip 1 right_side_plate_lower_front_clip RIGHT_PLATE_LOWER_FRONT_CLIP.stl RIGHT_PLATE_LOWER_FRONT_CLIP.obj

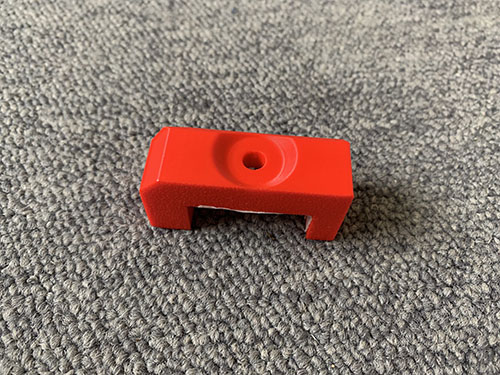

P32 Right side plate upper front clip 1 right_side_plate_upper_front_clip RIGHT_PLATE_UPPER_FRONT_CLIP.stl RIGHT_PLATE_UPPER_FRONT_CLIP.obj

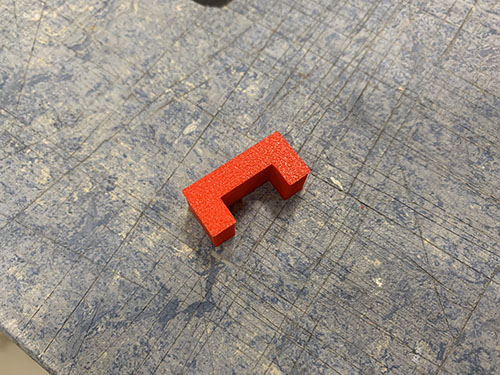

P33 USB lock 1 USB_A_female USB_LOCK.stl USB_LOCK.obj

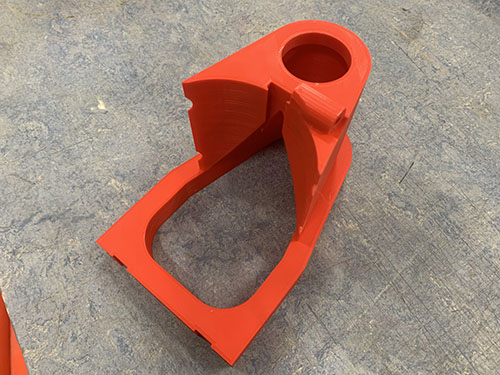

P34 Vaccum funnel 1 vaccum_funnel VACUUM_FUNNEL.stl VACUUM_FUNNEL.obj

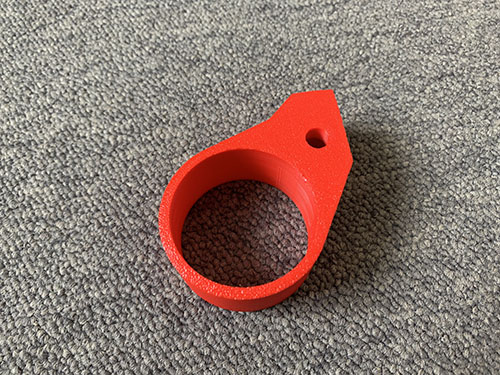

P35 Vaccum hose ring 1 vaccum_hose_ring VACUUM_HOSE_RING.stl VACUUM_HOSE_RING.obj

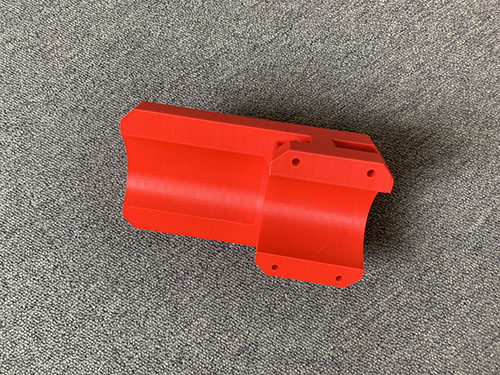

P36 Vertical carriage slider 1 vertical_carriage_slider VERTICAL_SLIDER.stl VERTICAL_SLIDER.obj

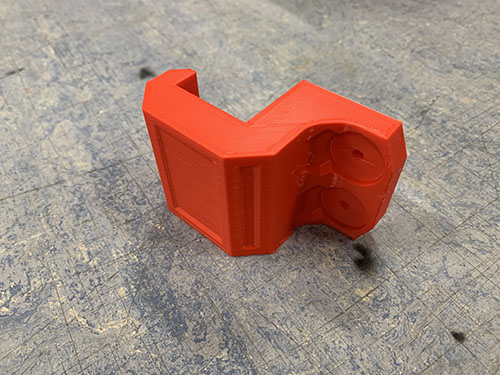

P37 Wasteboard bracket 7 wasteboard_bracket.jpg BRACKET.stl Missing

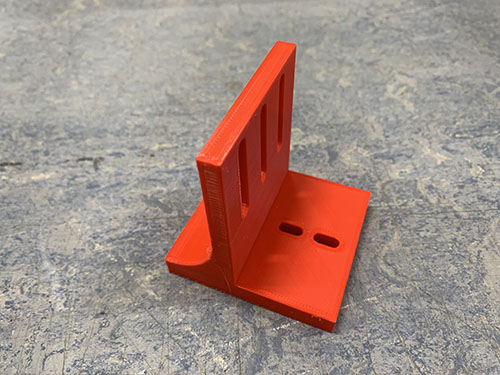

P38 X-axis cable chain mount 1 x_axis_cable_chain_mount CABLE_CHAIN_MOUNT.stl CABLE_CHAIN_MOUNT.obj

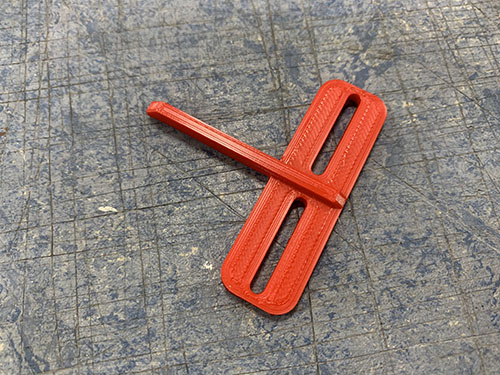

P39 Z-axis end-stop trigger 1 z_limit_trigger Z_END_STOP_TRIGGER.stl Missing

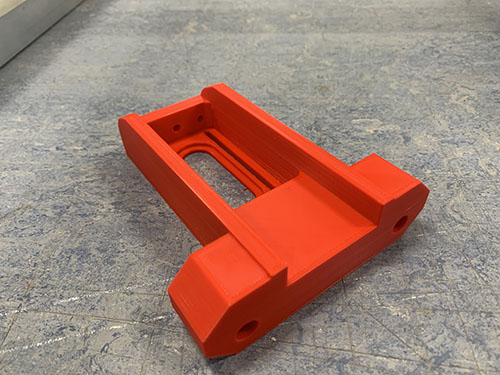

P40 Z-axis stepper motor mount 1 z_motor_mount Z_MOTOR_MOUNT.stl Z_MOTOR_MOUNT.obj

Screws

Item No. Size Length Amount Image

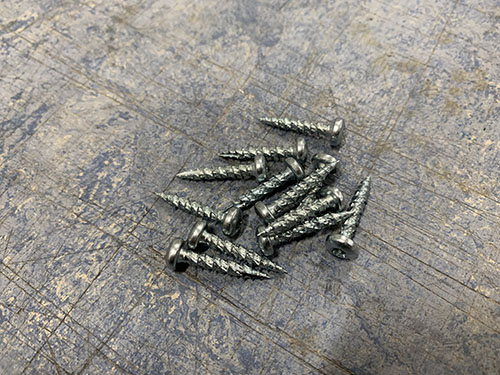

S01 3.5mm 20mm 14 3-5mm_20mm

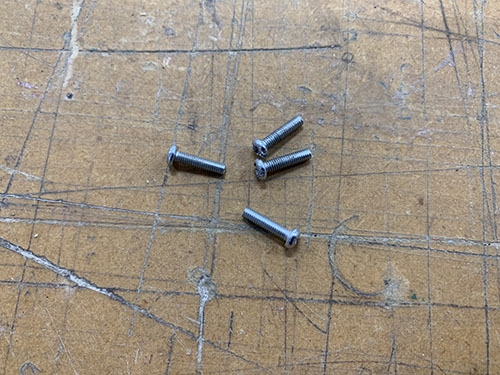

S02 M3 12mm 20 M3_12mm

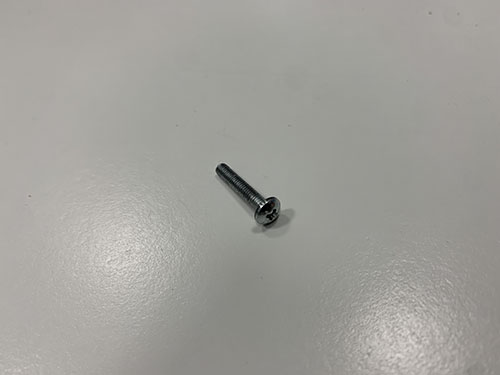

S03 M3 16mm 96 M3_16mm

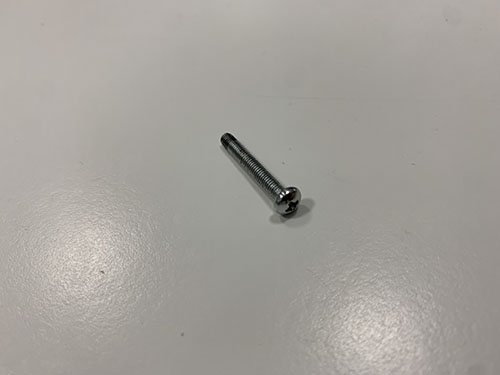

S04 M3 20mm 32 M3_20mm

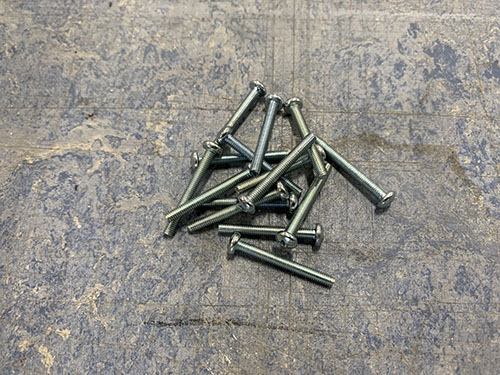

S05 M3 25mm 36 M3_25mm

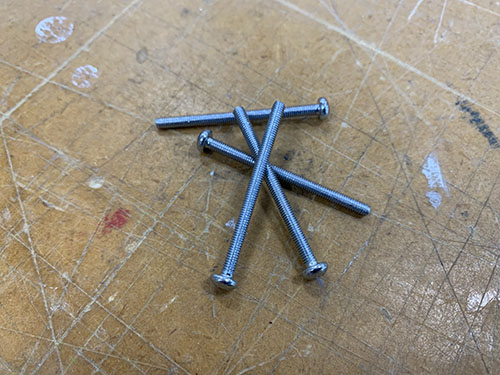

S06 M3 40mm 12 M3_40mm

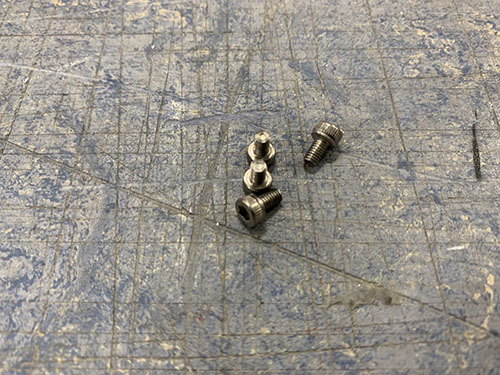

S07 M3 5mm 8 M3_5mm

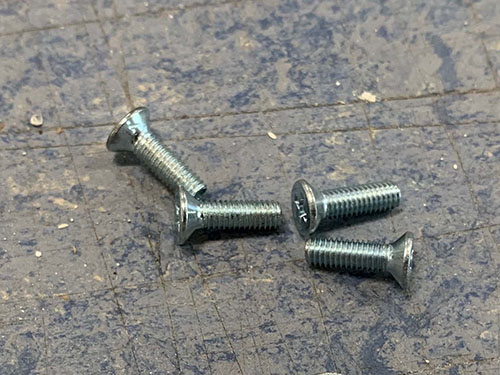

S08 M3 8mm 4 M3_8mm

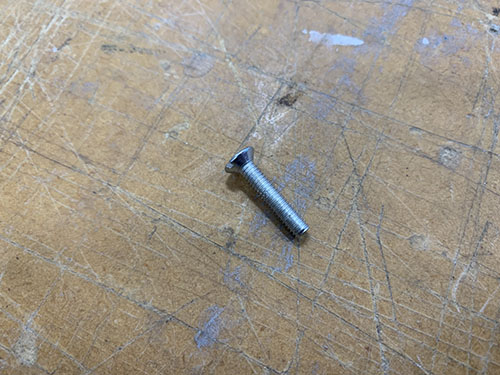

S09 M4 18mm 2 M4_18mm

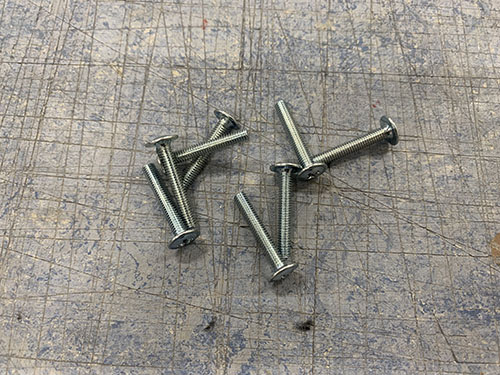

S10 M4 25mm 19 M4_25mm

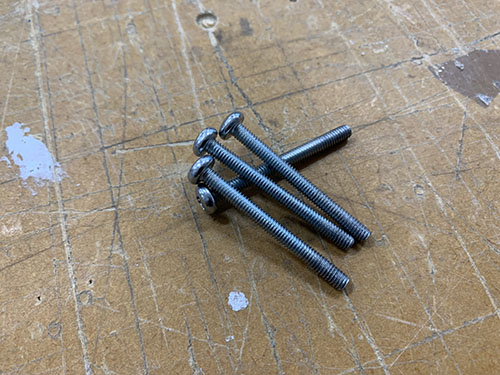

S11 M4 40mm 8 M4_40mm

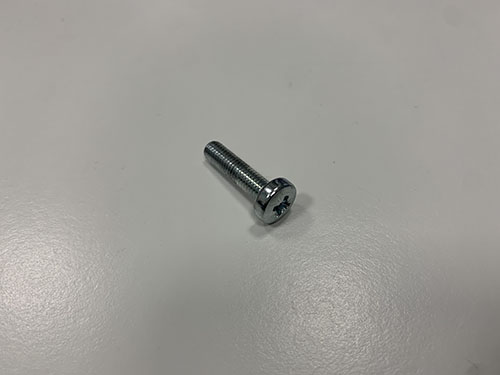

S12 M5 20mm 26 M5_20mm

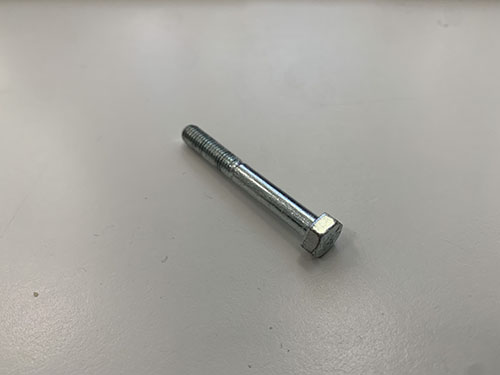

S13 M5 40mm 6 M5_40mm

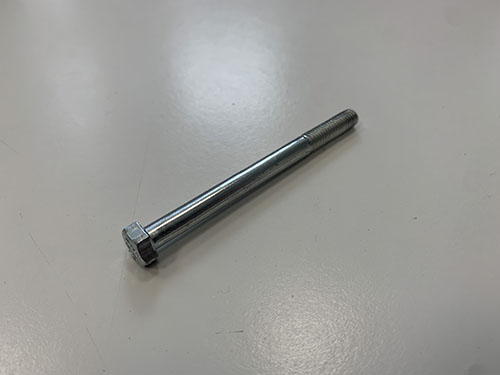

S14 M5 60mm 2 M5_60mm

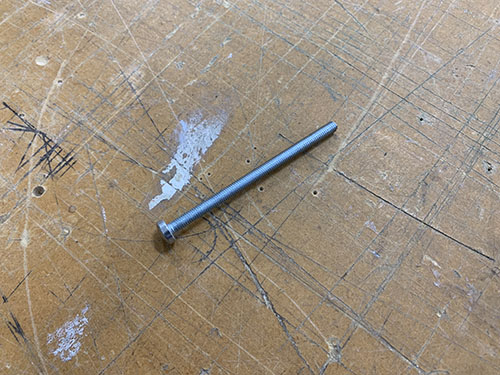

S17 M5 80mm 1 M5_80mm

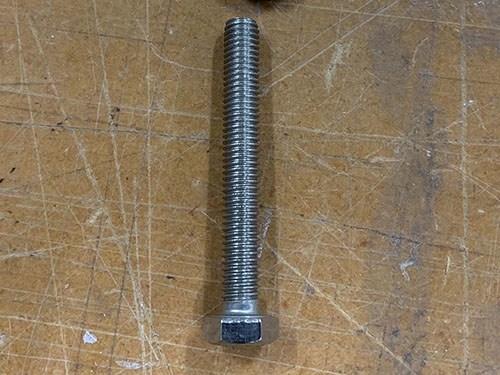

S15 M8 60mm 9 M8_60mm

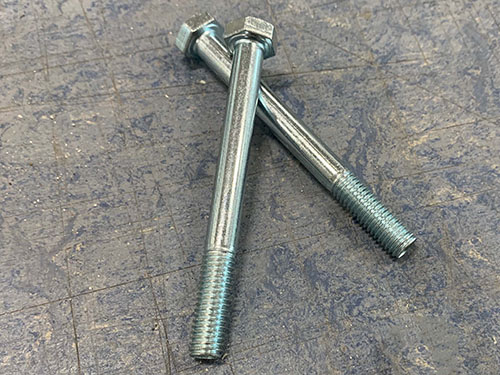

S16 M8 80mm 2 M8_80mm

Nuts

Item No. Size Amount Image

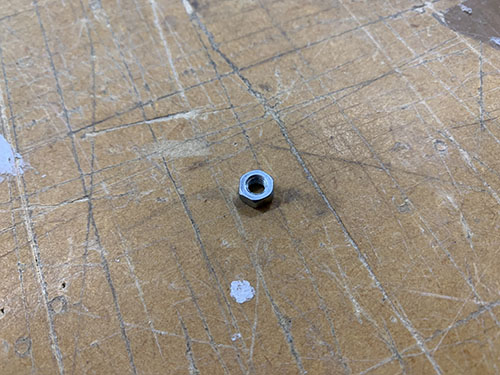

N01 M4 11 M4

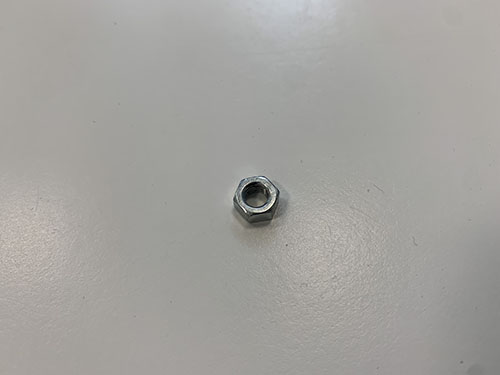

N02 M5 15 M5

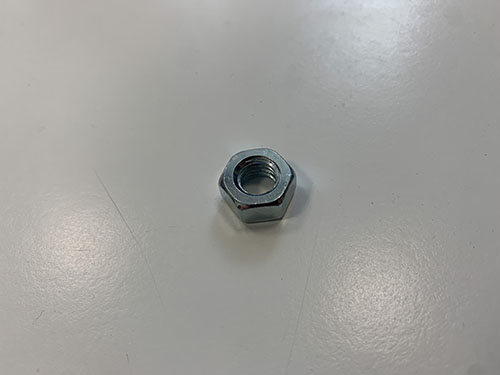

N03 M8 35 M8

Washers

Item No. Outer diameter Inner diameter Thickness Amount Image

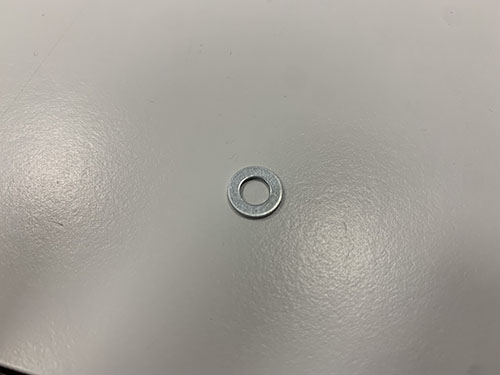

W01 10mm 5mm 1mm 13 10mm_5mm_1mm

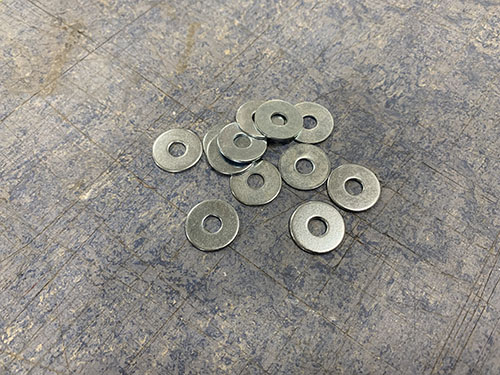

W02 15mm 5mm 1mm 14 15mm_5mm_1mm

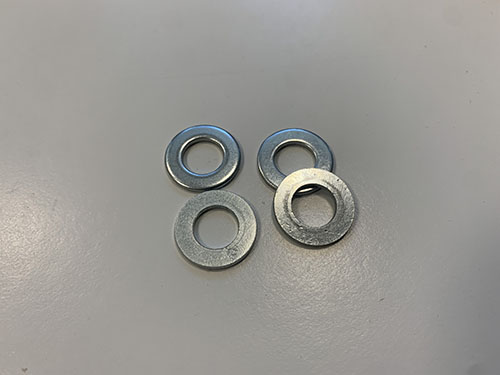

W03 15mm 8.5mm 1.5mm 24 15mm_8-5mm_1-5mm

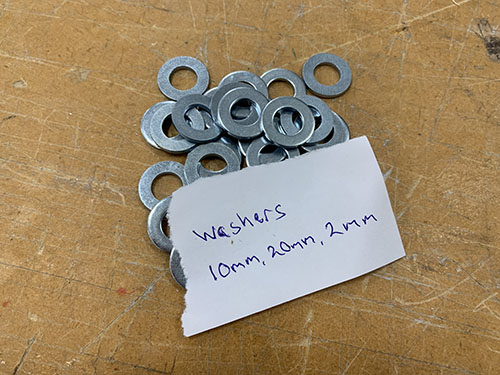

W04 20mm 10mm 2mm 27 20mm_10mm_2mm

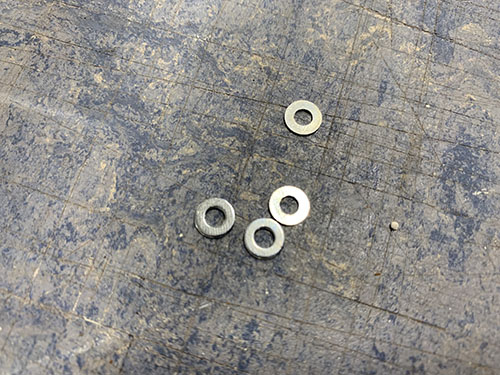

W05 8mm 4mm 0.5mm 12 8mm_4mm_0-5mm

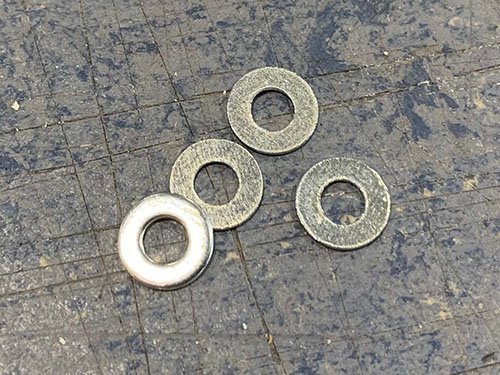

W06 8mm 4mm 1mm 4 8mm_4mm_1mm

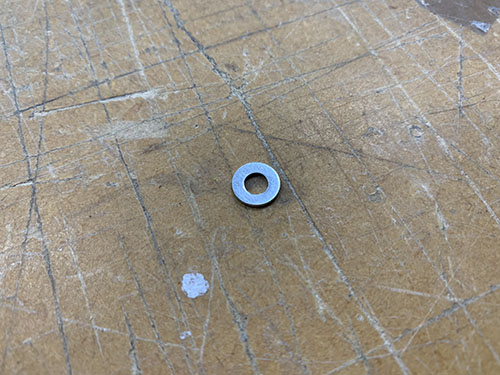

W07 9mm 4.5mm 1mm 2 9_4-5_1mm

Electronics

Item No. Type Amount Image

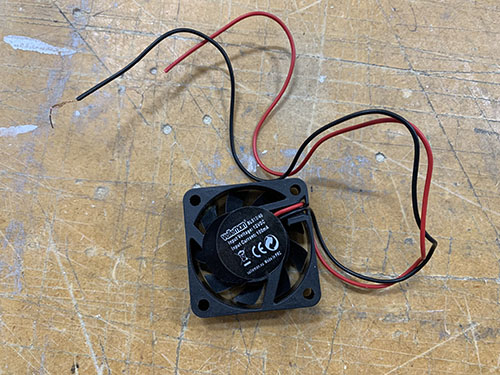

E01 12V Fan 2 fan

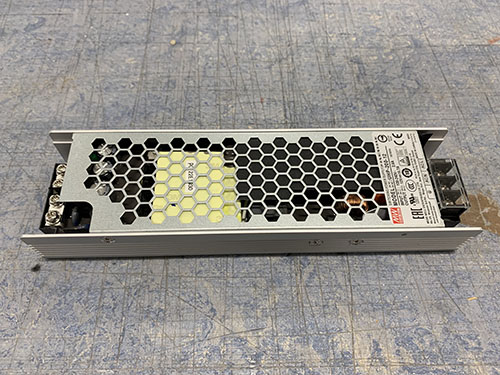

E02 12V power supply (UHP-200-12) 1 power_supply

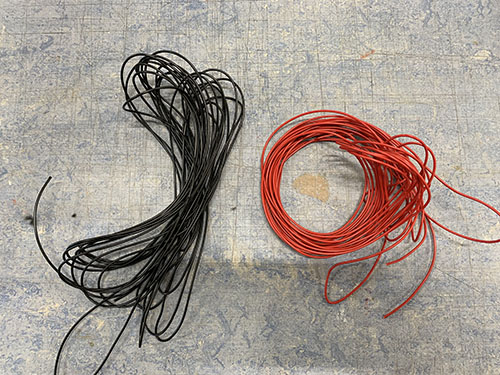

E03 12V wires (black and red) ~10m 12V_cable

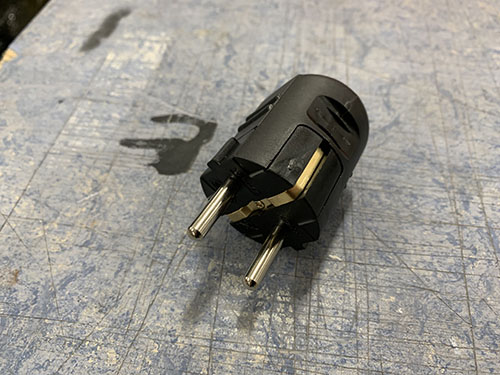

E04 220V power plug 1 power_plug

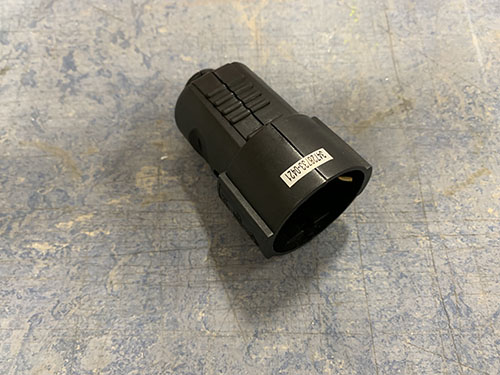

E05 220V power socket 1 power_socket

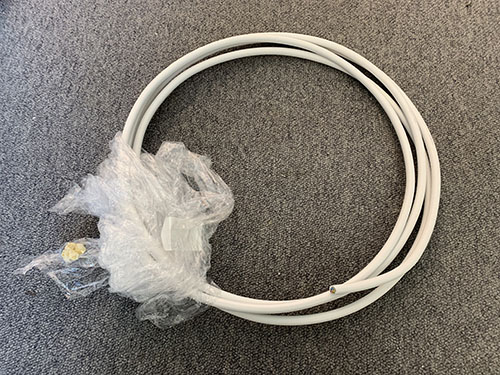

E06 220V/10A cable (red, blue and green/yellow) ~2m 220V_cable

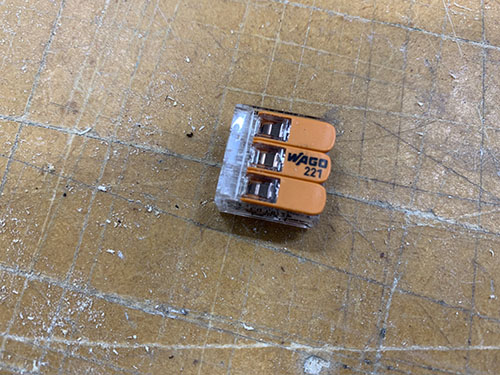

E07 3-way Wago splicing connector (221-413) 3 3-way_wago_splicing_connector

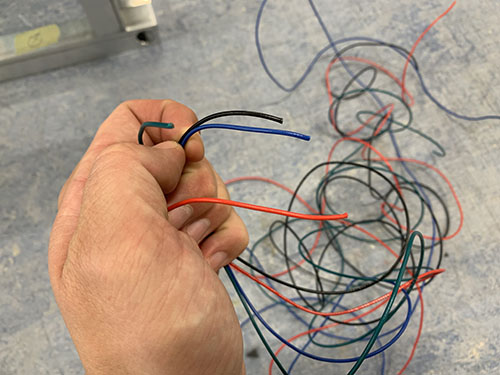

E08 AWG22 wire (red, blue, green and black) ~10m per color awg22_wire

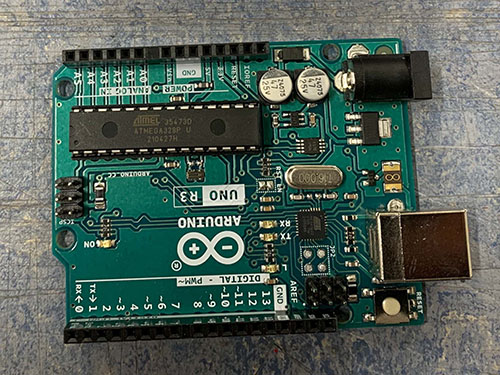

E09 Arduino Uno 1 Arduino_Uno

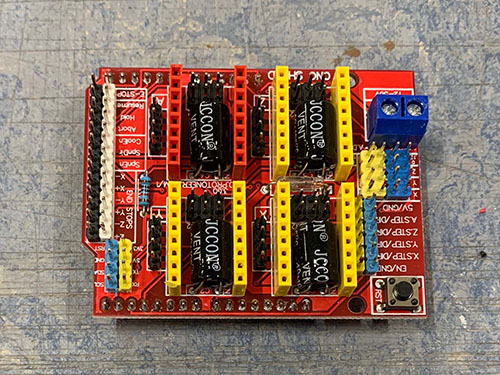

E10 Arduino Uno CNC Shield 1 CNC_shield

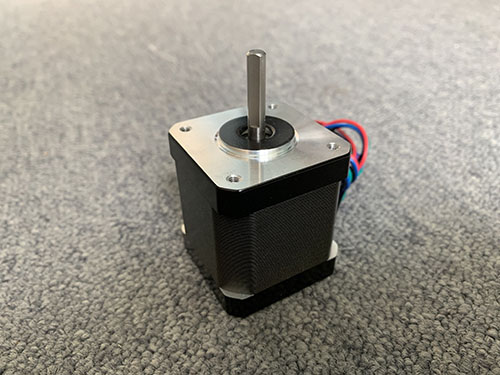

E11 Bipolar stepper motor (Nema 17, no gear, 5mm shaft diameter) 1 NEMA17_no_gears
E12 C-GRID III contact housing, 2.54mm (1X2) 5 Missing

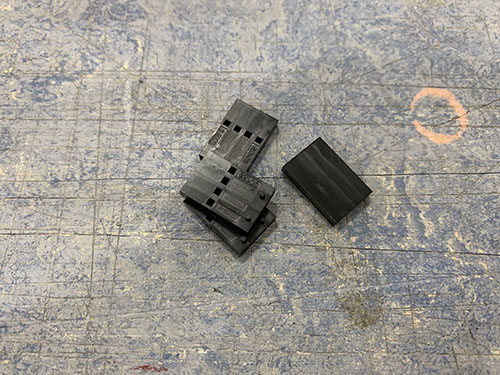

E13 C-GRID III contact housing, 2.54mm (1X4) 4 contact_housing

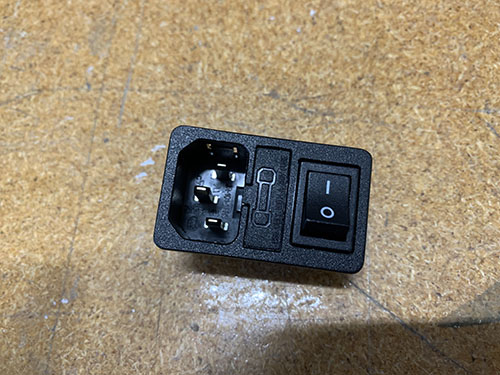

E14 C14 terminal 1 c14_terminal

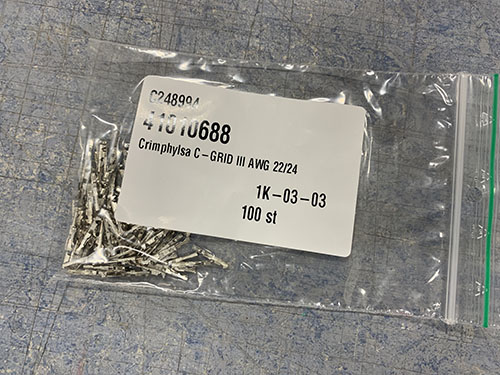

E15 Crimp sleeve C-GRID III AWG 22/24 26 crimp_sleeve

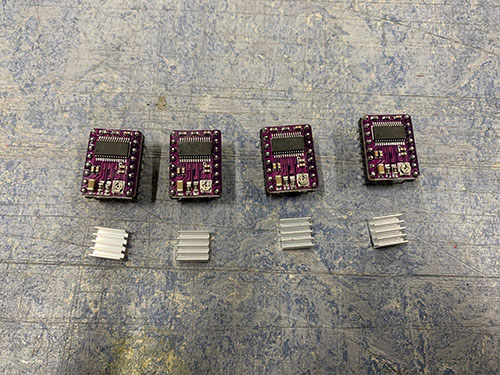

E16 DRV8825 stepper drivers 4 stepper_drivers

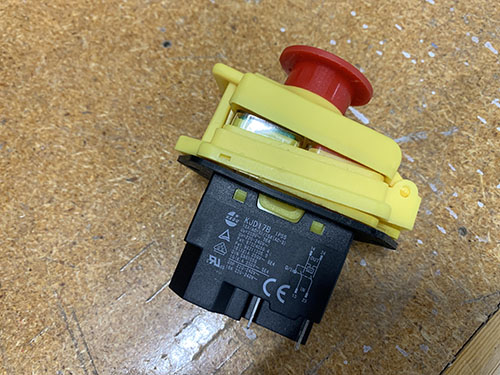

E17 Emergency stop switch (KJD17B) 1 emergency_stop_switch

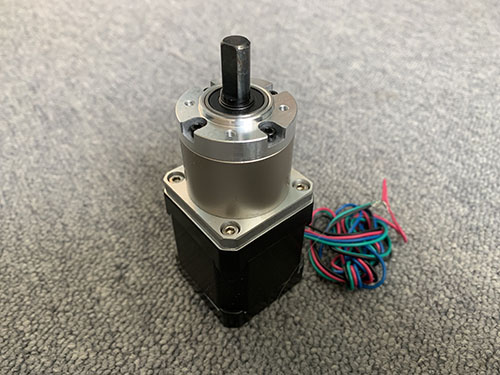

E18 Geared (19:1) bipolar stepper motor (Nema 17, 8mm shaft diameter) 3 NEMA17_geared

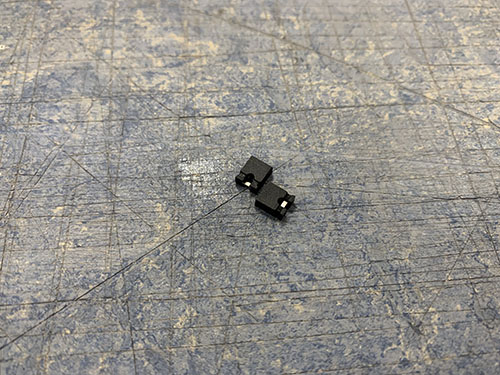

E19 Jumpers 6 jumpers

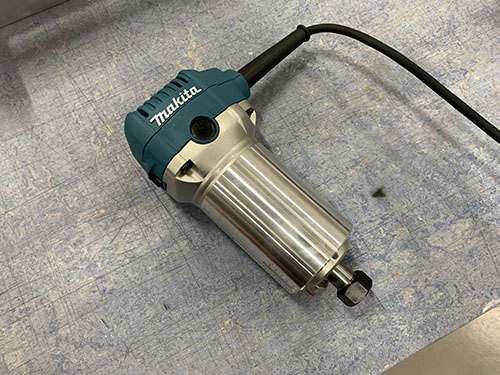

E20 Makita RT0700C (milling router) 1 milling_router

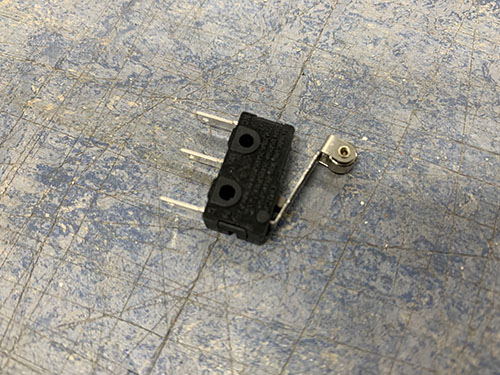

E21 Microswitch 5 microswitch

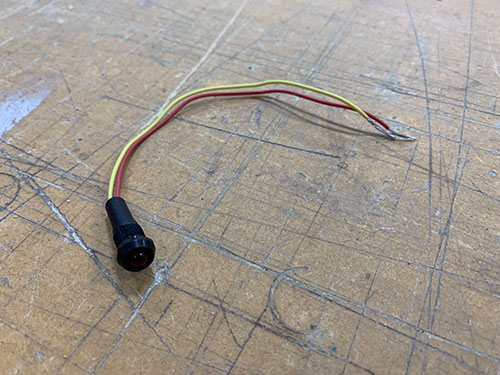

E22 Red LED 1 red_led

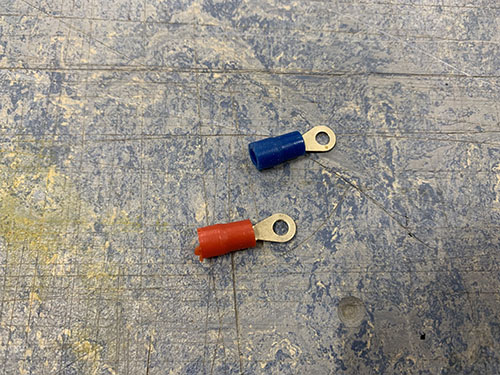

E23 Ring terminal (M3) 4 ring_terminal_M3

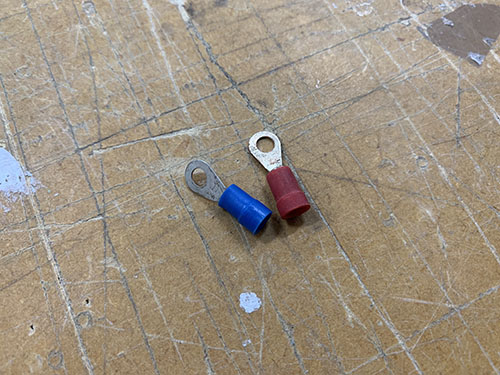

E24 Ring terminal (M4) 3 ring_terminal_M4

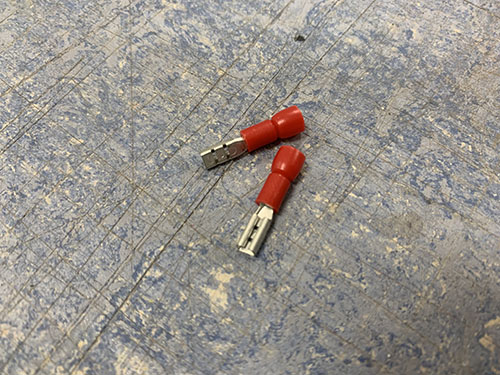

E25 Spade connector (2.8mm) 10 spade_connector_2-8mm

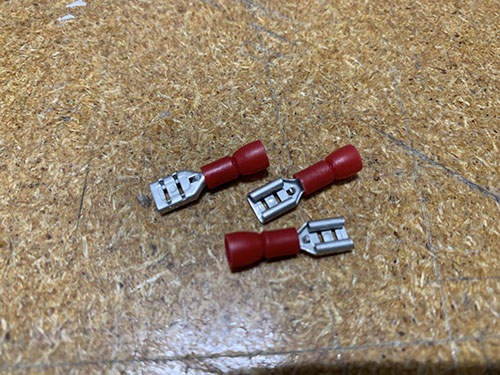

E26 Spade connector (4.8mm) 6 spade_connector_4-8mm

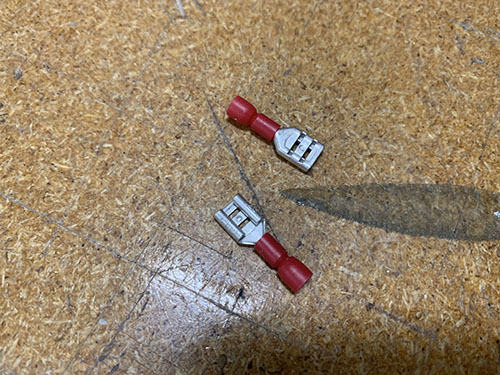

E27 Spade connector (6.3mm) 4 spade_connector_6-3mm

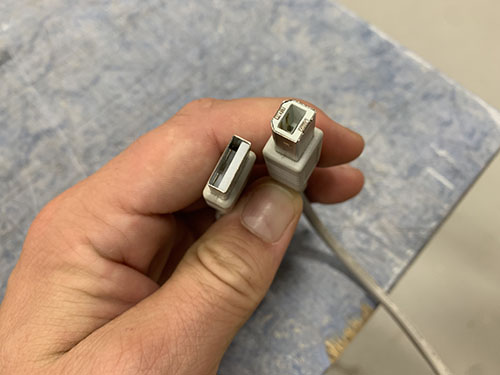

E28 USB A (male) to USB B (male) 1 USB_A_to_USB_B

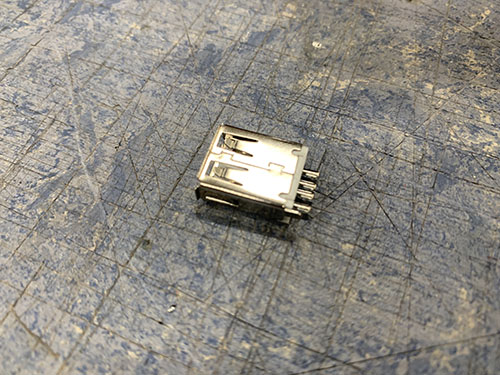

E29 USB A PCB (female) 1 usb_a_female

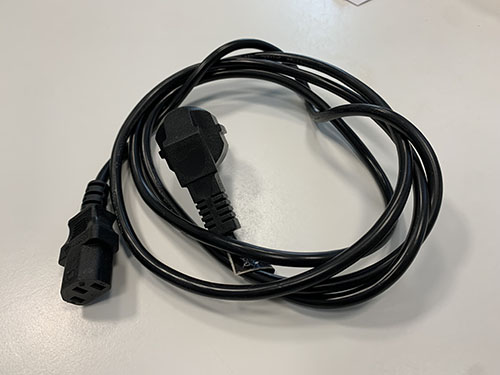

E30 C13 cable 1 c13_cable

Threaded rods

Item No. Size Length Amount Image

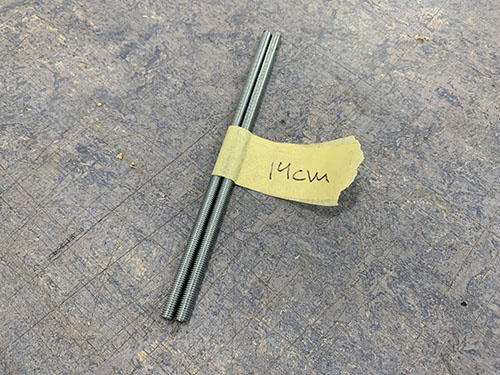

T01 M5 140mm 2 threaded_rod_M5_140_mm

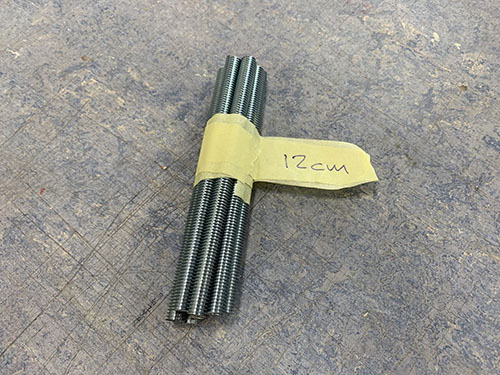

T02 M8 120mm 8 threaded_rod_M8_120_mm

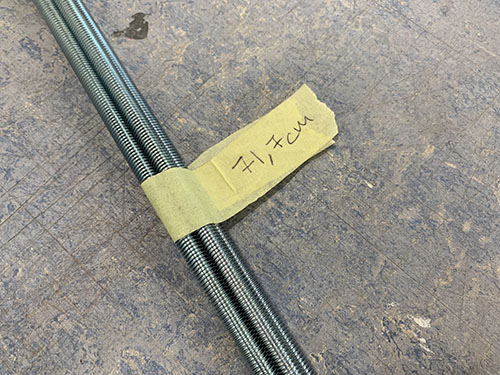

T03 M8 717mm 4 threaded_rod_M8_717_mm

Other

Type Amount Image

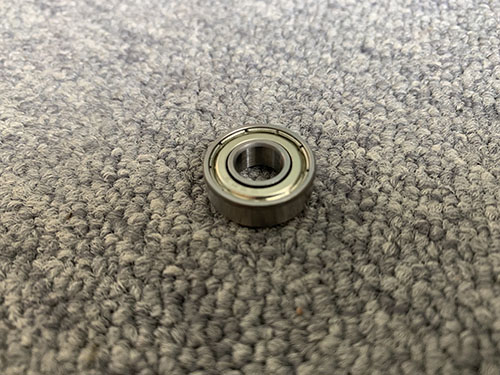

O01 698zz bearing 18 698zz_bearing

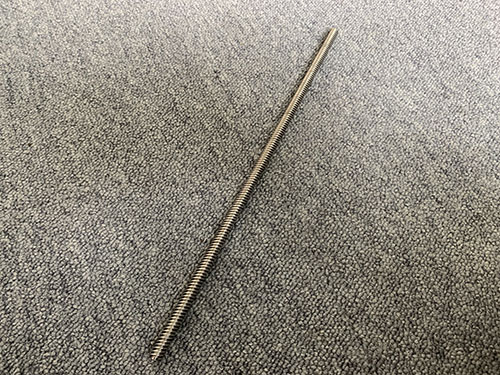

O02 Acme threaded rod (300 mm long, 8x8mm) 1 acme_threaded_rod

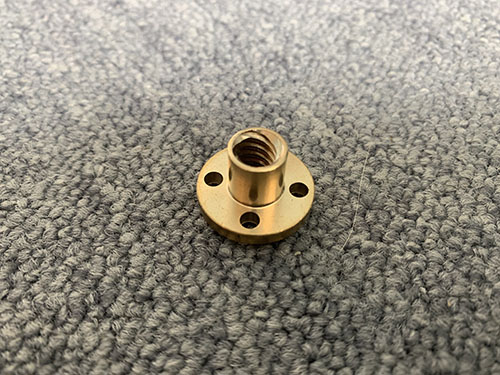

O03 Acme threaded rod nut (8x8mm) 1 acme_nut

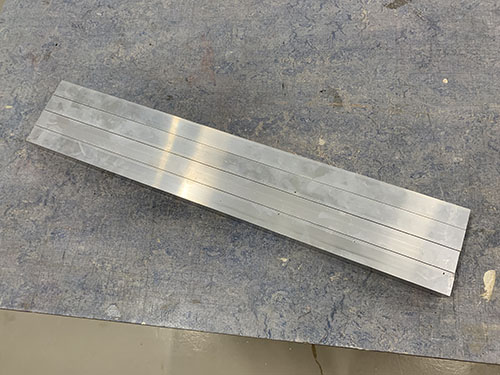

O04 Aluminium profiles (677x30x30 mm) 4 aluminium_profiles_677mm_30mm_30mm

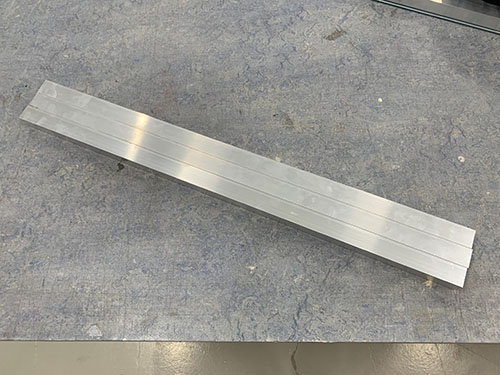

O05 Aluminium profiles (803x30x30 mm) 3 aluminium_profiles_803mm_30mm_30mm

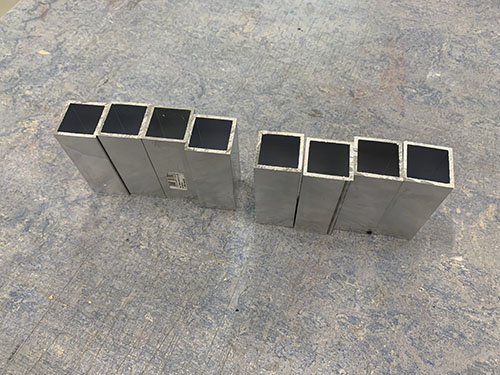

O06 Aluminium profiles (80x30x30 mm) 8 aluminium_profiles_80mm_30mm_30mm

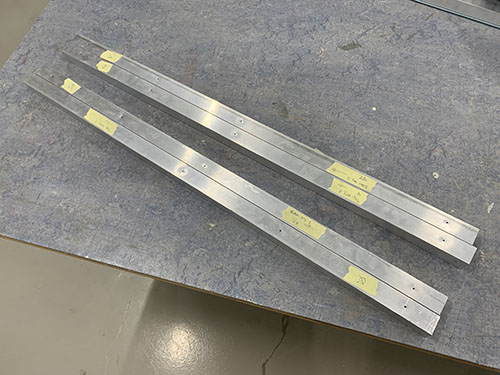

O07 Aluminium profiles (900x30x30 mm) 4 aluminium_profiles_900mm_30mm_30mm

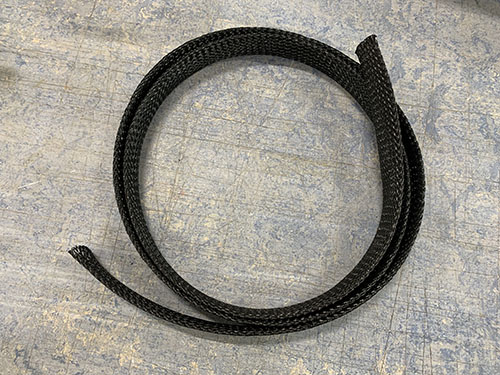

O08 Braided cable sleeve (20mm) 5m cable_sleeve

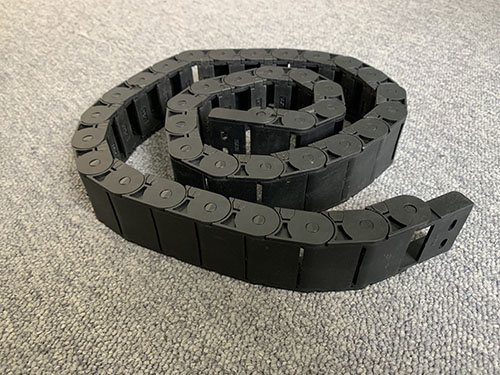

O09 Cable chain (1m long, 30x15mm inner dimensions) 2 cable_chain

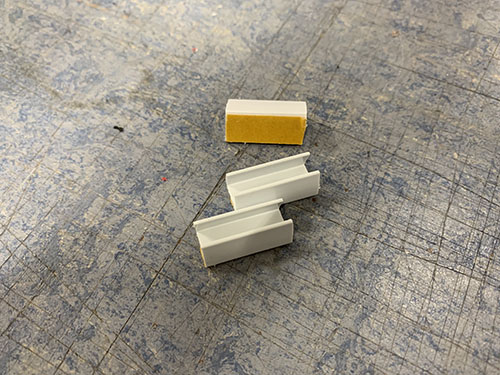

O10 Cable clip 1 cable_clip

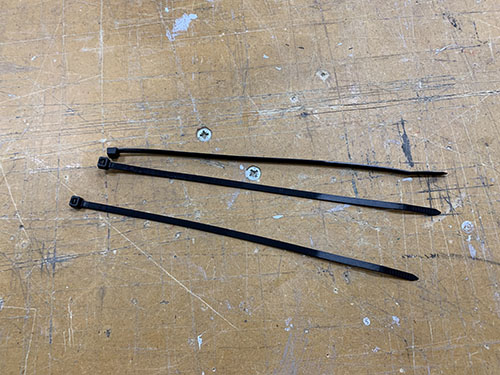

O11 Cable ties ~30 cable_ties

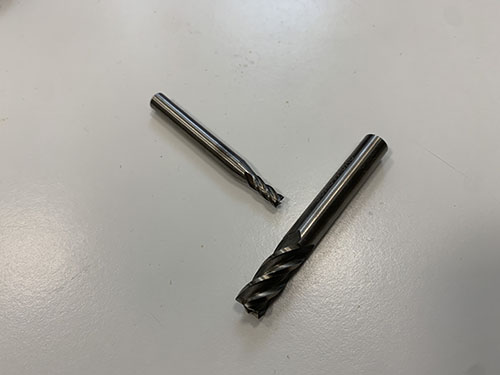

O12 Flat end mill NA flat_end_mills

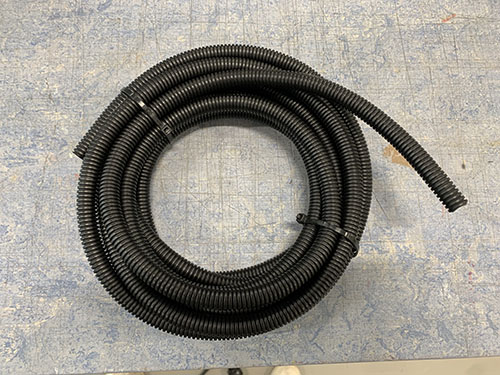

O13 Flexible conduit 2m cable_conduit

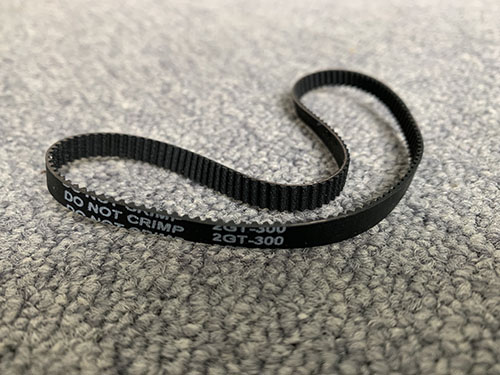

O14 GT2 belt (6mm belt width, 300mm long) 1 2GT_belt_300_mm

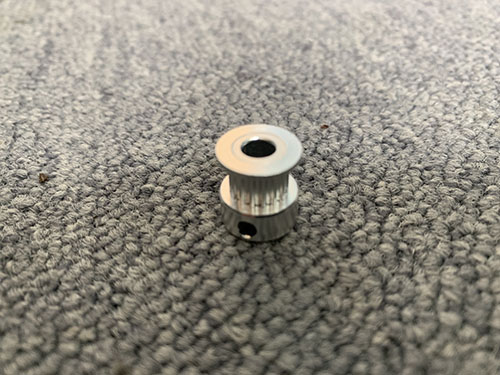

O15 GT2 pulley (16 teeth, 5mm bore, 6mm belt width) 1 2GT_pulley_16_teeth

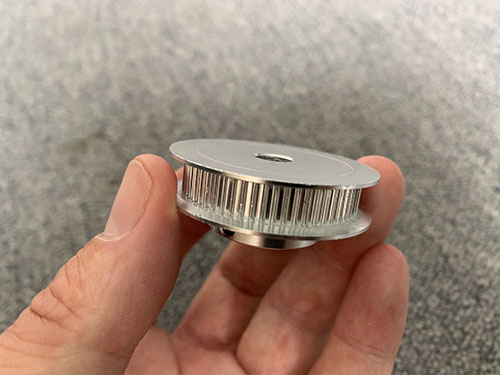

O16 GT2 pulley (60 teeth, 8mm bore, 6mm belt width) 1 2GT_pulley_60_teeth

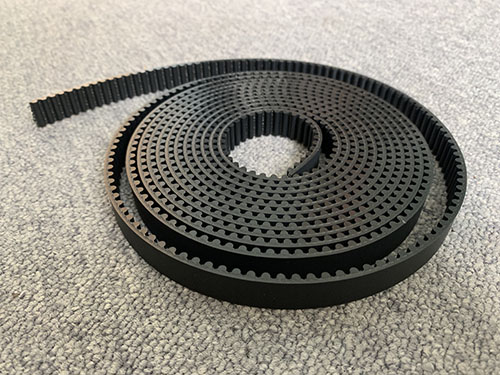

O17 HTD5M belt (15mm width) 4m HTD5M_belt

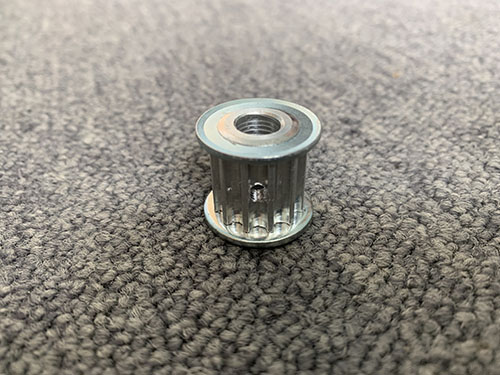

O18 HTD5M pulley (12 teeth, 8mm bore, 15mm belt width) 3 HTD5M_pulley

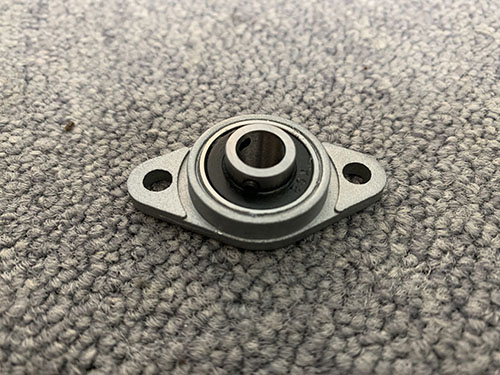

O19 KFL08 rod bearing (8mm) 2 KFL08_rod_bearing

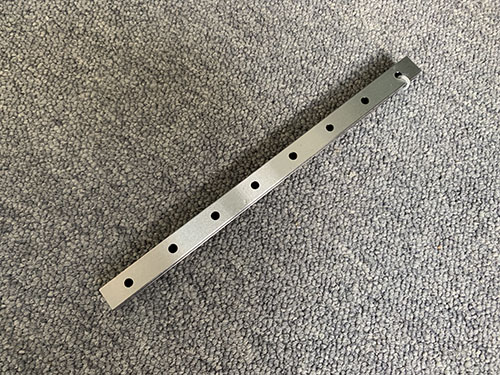

O20 MGN12H linear rail (200mm) 2 MGN12H_rail_200_mm

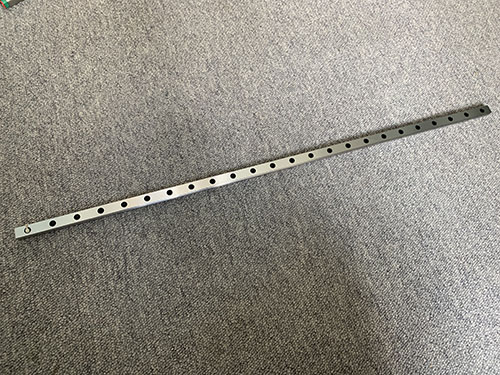

O21 MGN12H linear rail (600mm) 4 MGN12H_rail_600_mm

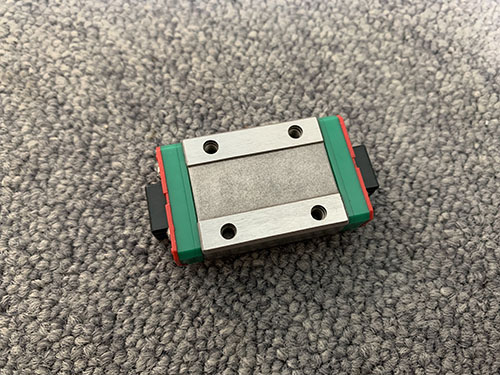

O22 MGN12H linear rail block 12 MGN12H_rail_block

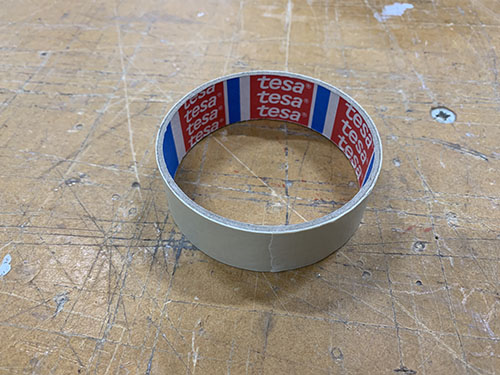

O23 Masking tape 1 masking_tape

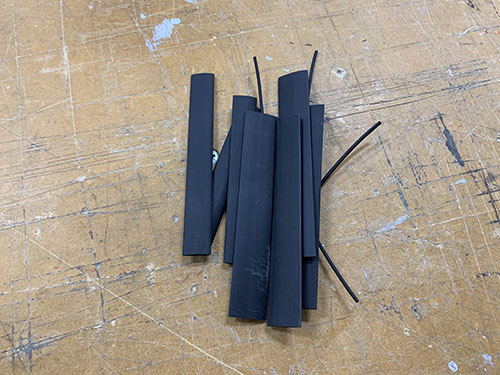

O24 Shrinking tubes NA shrinking_tubes

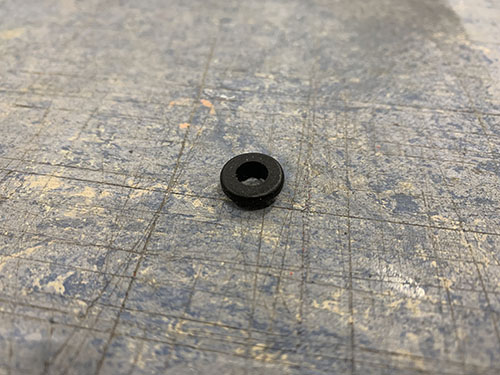

O25 Cable grommet 1 cable_grommet

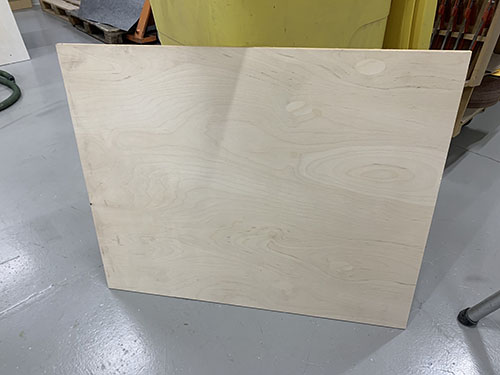

O26 Plywood (approx. 12x1500x1500mm) 1 plywood

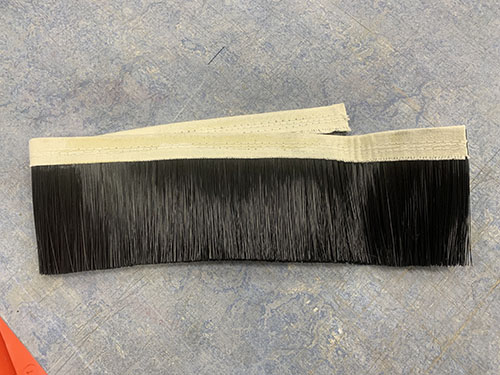

O27 Brush 0.5m dust_shoe
